This equipment has been sold
| Asset Info |
| Make |
Crown |
| Model |
RC5545-40 |
| Model Year |
Unknown |
| Serial Number |
1A448532 |
| Description |
Status |
| Key Hours |
Not available truck inoperable |
| Drive Hours |
Not available truck inoperable |
| Lift Hours |
Not available truck inoperable |
| Fuel Type |
Electric |
| Volts |
36 |
| Stages |
Quad Stage |
| Collapsed Height |
83 |
| Raised Height |
240 |
| Category |
Description |
Status |
Notes |
Resolution |
Cost |
| default |

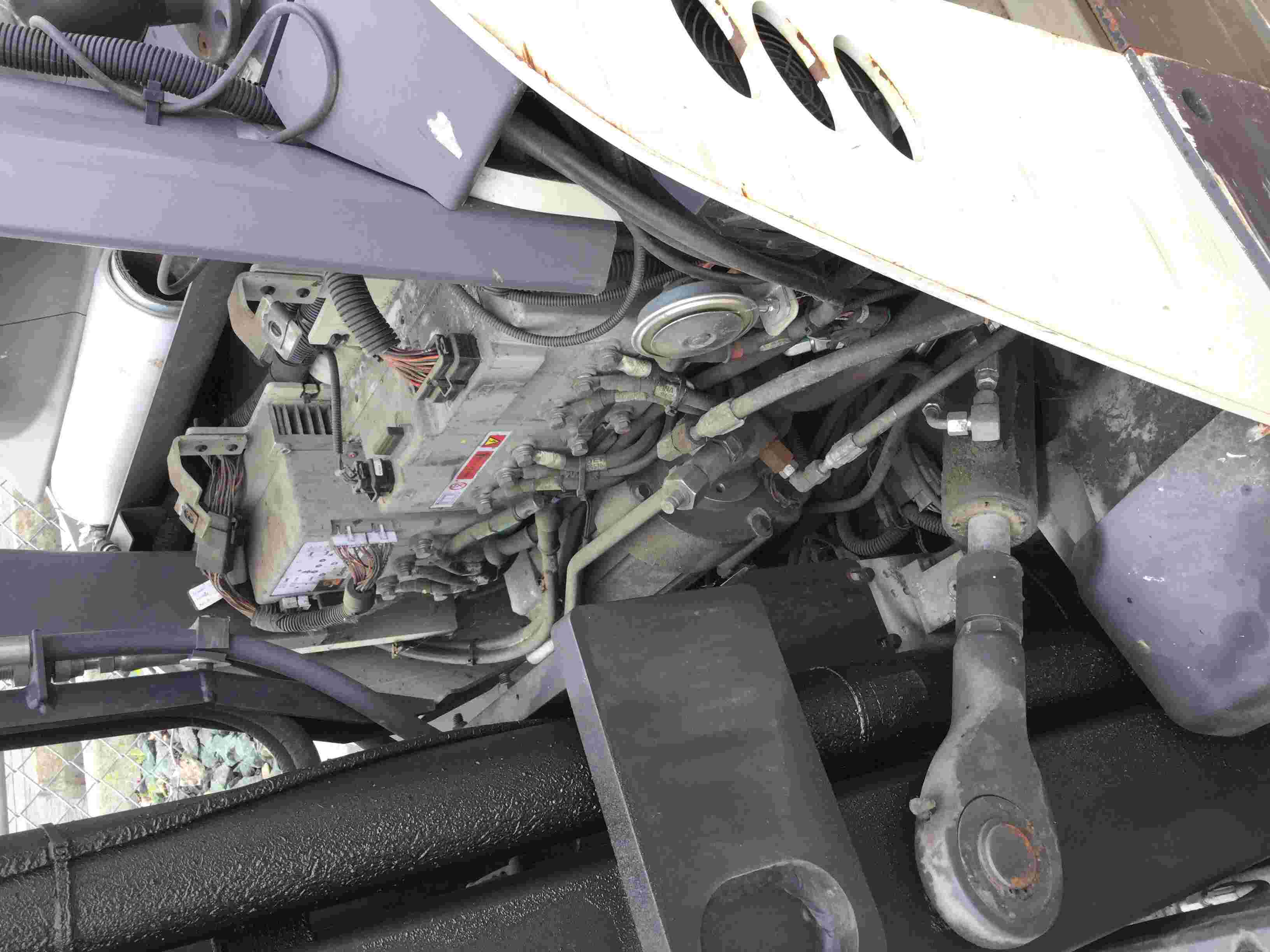

Photo (Continued) |
Covers removed |
|
|
|
| Appearance |
Overall |
Poor |
Covers and panels removed scratches paint scrapes and rusted |
Sand and paint |
$900 |
| Attachments / Forks |
Fork Condition |
Damaged |
Heavy rust |
|
|
| Brakes |
Parking Brake |
Damaged |
Cannot check and test truck inoperable |
|
|
| Brakes |
Brake System |
Damaged |
Cannot check and test truck inoperable |
|
|
| Carriage |
Frame |
Acceptable |
|
|
|
| Carriage |
Rollers |
Acceptable |
Appearance is ok but cannot raise Mast and inspect truck inoperable |
|
|
| Covers |
Overall |
Damaged |
Have been removed |
replace covers |
$500 |
| Covers |
Dash |
Damaged |
Covers have been removed |
|
|
| Covers |
Fenders |
Acceptable |
|
|
|
| Covers |
Hood |
Acceptable |
|
|
|
| Drive Axle |
Overall |
Damaged |
Appearance ok on drive units cannot check and inspect truck inoperable |
|
|
| Electric System |
Battery |
Missing/Not Included |
|
|
|
| Electric System |
Display |
Not Operating |
|
requires further diagnostics, truck is sitting outside, electrical issues likely |
$2,050 |
| Electric System |
Ignition |
Damaged |
Switch is missing from unit |
|
|
| Frame |
Overall |
Acceptable - No Dents |
|
|
|
| Lift Cylinders |
Overall |
Need Replaced |
Left hand side lift cylinder is heavily leaking |
Repack cylinders |
$800 |
| Lights |
Head Lights |
Not Working |
|
|
|
| Lights |
Strobe Lights |
Not Working |
No strobe |
|
|
| Load Back Rest |
Overall |
Acceptable |
|
|
|
| Pump / Motor |
Hoses |
Damaged |
Heavy weathering and cracks |
replace all hosing |
$2,500 |
| Pump / Motor |
Levers |
Damaged |
Very weathered and cracked |
|
|
| Pump / Motor |
Overall |
Damaged |
Unable to test and inspect truck inoperable |
|
|
| Safety |
Alarms & Horn |
Not Working |
|
|
|
| Safety |
Overhead Guard |
Acceptable |
|
|
|
| Safety |
Pedals & Floormat |
Worn |
Heavy weathering and wear |
|
|
| Safety |
Cushion & Seatbelt |
Good |
No seat or belt on unit but backrest pad is whole but weathered |
|
|
| Tilt Cylinders |
Overall |
Acceptable |
Appearance is ok but unable to function test truck inoperable |
|
|
| Tires |
Tire Type |
Cushion |
|
|
|
| Tires |
Drive Tire Condition_ |
90% |
|
|
|
| Tires |
Drive Tire Cond. |
Chunked/Cut |
|
|
|
| Tires |
Steer Tire Condition_ |
25% |
|
replace tires |
$900 |
| Tires |
Steer Tire Cond. |
Chunked/Cut |
|
|
|
| Upright |
Chains |
Rusty |
|
|
|
| Upright |
Mast |
Acceptable |
|
|
|
| Forks |
Fork Length |
42 |
|
Forks worn beyond OSHA Standards - replace |
$900 |
| Hydraulics |
Functions |
Three-Way |
|
|
|
| Attachment |
Attachment Type |
Sideshift |
|
|
|
| Drive Gear(s) |
Overall |
Damaged |
|
|
|
| Total repair cost
| $8,550
|
